Select Other
Selects entities that are hidden by other entities.
To select hidden items:
In a part
or assembly document, right-click the model in the graphics area and choose
Select Other.

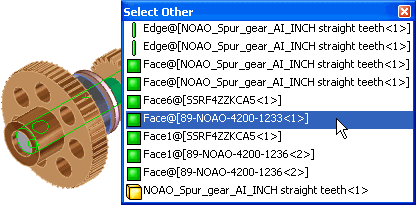

The pointer
changes to
and a box appears with a list of entities (faces,
edges, sub-assemblies, etc.) that lie beneath the pointer, in the order
in which they are encountered. An icon displays the type of entity (face,
edge, etc.).
Hover the pointer over items in the list
to highlight them in the graphics area.
To scroll
through the list, press Tab or
roll the middle
mouse button.
Click in
the list or the graphics area to select an entity.
