Center Marks

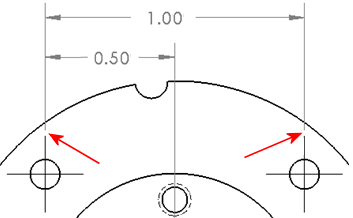

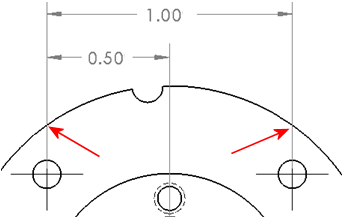

When you add a center mark to a hole that you have already dimensioned, a gap appears between the center mark and the dimension's extension line. Similarly, if you dimension a hole that already has a center mark, a gap appears.

SolidWorks 2009 SolidWorks 2010
Parent topic: Drawings and Detailing
