Hide and Show Bodies

With multibody parts, you can hide or show surface or solid bodies using View, Hide/Show Bodies.

To hide bodies:

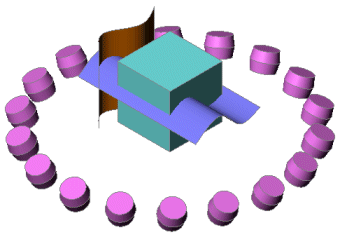

  1. Open a document containing multiple surface or solid bodies.

  2. Click View, Hide/Show Bodies.

  1. In the PropertyManager, under Hidden Bodies, select bodies in the graphics area for Surface/Solid Bodies .

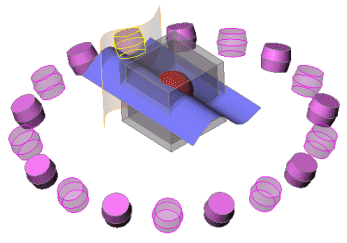

    When you select a body, it becomes translucent in the graphics area.

  2. Click .

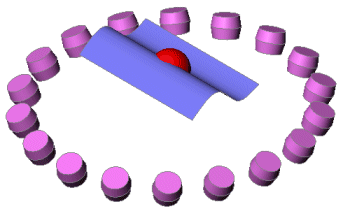

    The entities you selected remain hidden.

To show hidden bodies:

  1. Click View, Hide/Show Bodies again to open the PropertyManager.

  2. Select the translucent bodies in the graphics area. You can select some or all of the translucent bodies.

  3. Click .

    The translucent entities you selected are visible again.

You can also use the shortcut menu to hide a surface without using the PropertyManager to preview the entities you select. To show the hidden surface again, click View, Hide/Show Bodies, select the translucent bodies in the graphics area and click .

NOTES:

  • You can still select from the FeatureManager design tree to Hide or Show, but it does not open the PropertyManager or display the model in a translucent state.

  • To hide or show an assembly component, click Hide/Show Components on the Assembly toolbar.
