When opening a drawing, if dimensions have changed since the last time the drawing was saved, the changed dimensions are highlighted. To see changed dimensions, you must first save the part or assembly and the drawing in SolidWorks 2012. After you save the drawing with the changed dimensions, the changed dimensions highlighting is reset.
|
|

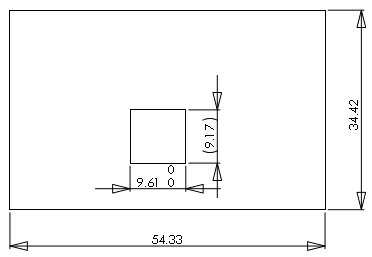

Before Changes
|
After Changes
|
