Creating an Exploded View

You can create exploded views of multibody parts.

  1. Open install_dir\samples\whatsnew\Parts\weldment01.sldprt.


  2. Click Insert > Exploded View.
  3. In the graphics area, select Gusset2.


    In the PropertyManager, under Settings, Gusset2 appears in Component(s) of the explode step PM_components_select.gif.

    A triad appears in the graphics area, aligned with the X, Y, and Z axes of the model.

    Next, change the alignment of the triad.

  4. Right-click the center sphere of the triad and click Align to.
  5. Select the narrow face of the gusset.



    The blue handle aligns normal to the selected face.

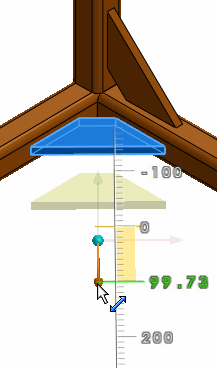

  6. Drag the blue handle to move the gusset forward.


  7. Drop the gusset approximately as shown.
