Multiple Annotations
The term multiple annotations refers to:
Multiple instances of an annotation
You can create multiple instances of a type of annotation without closing the PropertyManager or dialog box.
Not all annotations support multiple instances.
To create multiple annotations:
-
Click the appropriate tool from the Annotations toolbar, or click Insert, Annotations and select a tool from the menu.
-
Type in text and select options in the PropertyManager or dialog box.
-
With the PropertyManager or dialog box still open, click in the graphics area to place the annotation.
-
Click as many times as necessary if you need to place multiple copies.
-

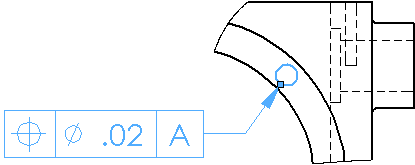

If the annotation has a leader, click to place the leader, then click again to place the annotation.
-
You can change text and other items in the PropertyManager or dialog box for each instance of the annotation.
-
Click OK .
Combinations of annotations
You can move or copy multiple annotations as follows:
-
You can select annotations, dimensions, drawing views, and sketch entities. You can select items individually or by box selection.
-
You can cut and paste or drag multiple items in drawings, or you can use the Move Entities or Copy Entities tools. Any individual item can be moved, deleted, and so on at the new location.
-
When you paste multiple items, the paste point is the center of all the selected items. All pasted items retain their relative positions.
-
You can cut or copy items from one drawing sheet and paste them on another sheet.
-
You can cut or copy items that belong to different views. When pasted, the items are all attached to the active view.
To copy and paste annotations:
-
Select an annotation.
-
Click Copy (Standard toolbar) or Edit, Copy.
|
|
-
Click in the sheet and click Paste (Standard toolbar) or Edit, Paste.
You can edit and re-attach the copy.
You can also press Ctrl and drag an annotation. When you drop the annotation, a copy appears.
|
|
