Convert Entities

You can create one or more curves in a sketch by projecting an edge, loop, face, curve, or external sketch contour, set of edges, or set of sketch curves onto the sketch plane.

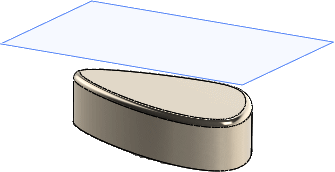

Original part
convert_entities2.png convert_entities3.png

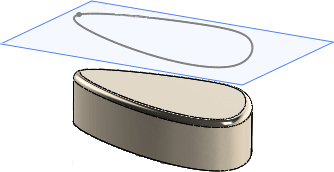

Sketch plane above part Loop of edges projected onto plane using Convert Entities
