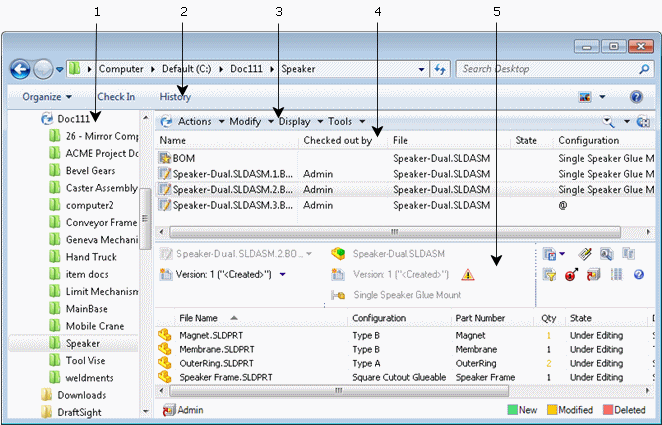

BOM view lists the activated and named BOMs in the current folder and lets you view and modify their details.
1 |
Navigation pane |
Lets you
browse vaults and folders. |
2 |
Windows Explorer toolbar |
Contains commands that apply to the selected file or folder. When you are logged in to an Enterprise PDM vault, the Help button on the Windows Explorer toolbar opens the SOLIDWORKS Enterprise PDM File Explorer help.
|
3 |
Enterprise PDM menu bar |
Contains menus of commands that can be performed for the selected file or folder. |
4 |
BOM lists |
Lists the named and activated BOMs in the current folder. |
5 |
BOM contents |
Displays the details of the BOM, which depend on the type of BOM you are viewing. |
