The Graphical Properties tab shows the graphical properties of any CAD entity, symbol, or wire element.
The Graphical properties
tab in the Properties Panel lets you segregate the contents of a selection. When you select a CAD entity, symbol, or wire element, all of its associated properties are listed with its graphical entity.
The Properties Panel is dockable on the side panels.
When you select a group of entities, all common properties are displayed. When you select specific entities, the related properties are displayed. Uncommon properties are hidden. Changing uncommon properties does not affect the CAD entity because it is driven at the application level.

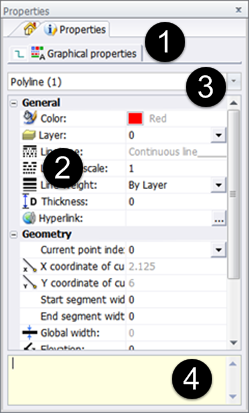

The Graphical properties tab includes:
| Item |
Description |
|---|
| 1 |
Graphical properties tab in the Properties panel. |
| 2 |
Graphical icons corresponding to the listed property. |
| 3 |
Drop-down menu listing the segregate contents or various entities of the selection, letting you choose a group of objects to edit.
|
| 4 |
Tooltip information such as why some properties are grayed out or cannot be edited. |
