Creating a Cut Thread

  1. Open a part file.

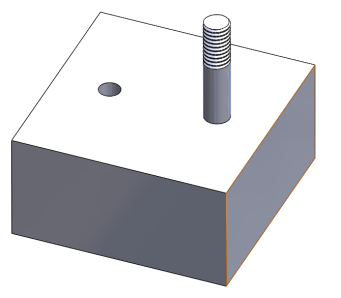

    The diameter of the cylinder is 6mm. Although you also create a 6mm thread profile, you could create any profile on the cylinder. The thread profile is not dictated by the diameter of the hole or shaft.

  2. Click Insert > Features > Thread .
  3. In the graphics area, select the top edge of the cylinder.
  4. In the PropertyManager, under Specification:
    1. In Type, select Metric Die.
    2. Set Size to M6x1.0.

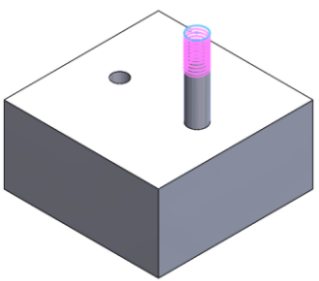

    The color of the preview varies depending on Color Scheme Settings in System Options, under Temporary Graphics, Remove Material and Add Material.
  5. Under Thread Location:
    1. Click Offset.
    2. Click Reverse Direction.
    3. Set Offset Distance to 1.00mm.
  6. Under End Condition, click Maintain Thread Length.

    The thread profile updates from 10 to 11 millimeters in length.

  7. Click .
