Full Round Fillets

Creates fillets that are tangent to three adjacent faces sets (with one or more faces tangent).

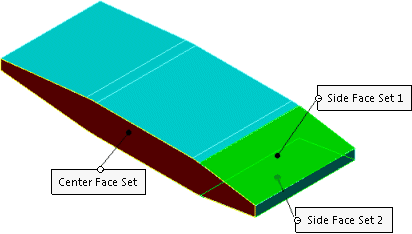

Select three adjacent face sets.

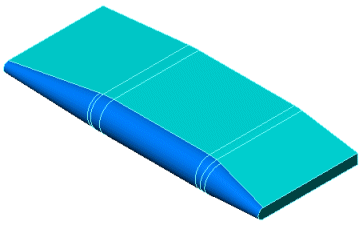

Full round fillet applied to one side of the model.

Items To Fillet

	Side Face Set 1	Select the first side face.
	Center Face Set	Select the center face.
	Side Face Set 2	Select the face set opposite Side Face Set 1 .
	Show selection toolbar	Shows/hides selection accelerator toolbars
	Tangent propagation	Extends the fillet to all faces that are tangent to the selected face. Example: Tangent Propagation
	Full preview	Displays a fillet preview of all edges.
	Partial preview	Displays a fillet preview of one edge only. Press the A key to view each fillet preview in turn.
	No Preview	Improves rebuild time with complex models.
