DimXpert Options
Allows you to set options for chamfers, slots, and fillets for use with
the DimXpert tool.
To set DimXpert options:
In a drawing, click Options
(Standard toolbar) or Tools,
Options.
On the Document
Properties tab, click DimXpert.
Set the options described below, then click OK.
Chamfer dimension scheme
|
|

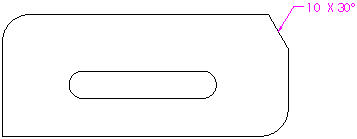

Distance X Angle |
|
|
|

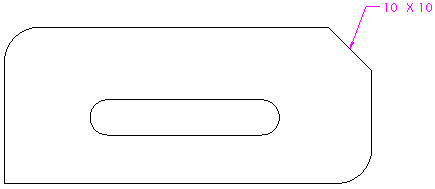

Distance X Distance |
|
Slot dimension scheme
|
|

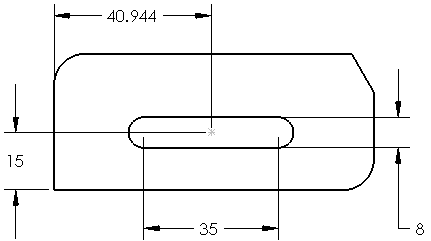

Center to Center |
|
|
|

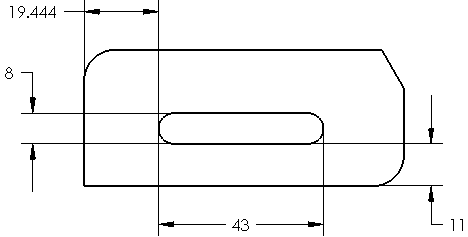

Overall Length |
|
Fillet and Chamfer options
|
Typ. Inserts single or multiple
dimensions to fillets or chamfers of the same size. The designation TYP appears after the dimension. |
|
|
Instance count. Displays the
number of instances of fillets or chamfers of the same size. |
|
|
None. Dimensions each fillet
or chamfer regardless if they are the same size. |
|
