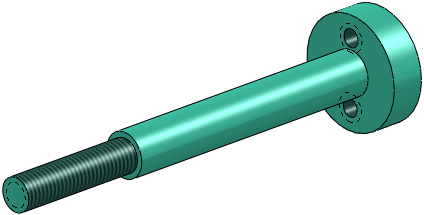

Cosmetic Threads

You can define cosmetic threads using international standard sizes in the Cosmetic Thread PropertyManager. When you select the edge for the cosmetic thread, you can select a dimensioning standard and size. Thread callouts can also be created automatically. The callouts are populated with the appropriate text from the calloutformat.txt file.

Parent topic: Drawings and Detailing
