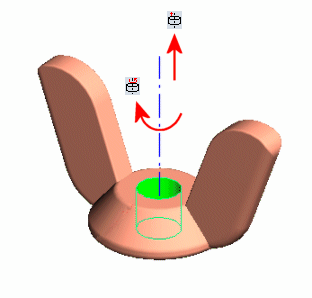

The selected face of the cylindrical hole can rotate about or move along the reference axis shown in the figure. Thick red arrows represent allowable motions.

Fig. 1

Fig. 2

Fig. 3

Consider fitting the ring in Fig. (1) inside the ring in Fig. (2). The inner ring (Fig. 1) has an outer diameter of 18.2 cm and is made of an elastic material. The outer ring (Fig. 2) has an inner diameter of 18 cm and is made of a rigid material. To fit the inner ring into the outer ring (Fig. 3), assign a radial displacement on the selected outer face of the inner ring of -0.1 cm with respect to the reference axis.
