Document Properties - Dimensions

You can specify document-level drafting settings for all dimensions.

Dimensions that are inserted using Insert Model Items, DimXpert, and other automated methods are placed on predefined locations that radiate out from the drawing view. You set the predefined locations in this dialog box.

To display this dialog box, in a drawing, click Options (Standard toolbar), select Document Properties, and then select Dimensions.

Overall drafting standard

Overall drafting standard Inherited from the selected Drafting Standard page settings.



Click to modify the font.

Each time you change the dimension font, the document-level font for each dimension type is updated accordingly.

Dual dimensions

Dual dimensions display Select to display dimensions in dual units.
Show units for dual display Select to display units for the second set of dimensions.
Dimension value position Top

Primary precision

Unit Precision Select the number of digits included after the decimal point for the value.
Tolerance Precision Select the number of digits included after the decimal point for the tolerance.

Dual precision

Unit Precision Select the number of digits after the decimal point from the list for the value in the secondary units.
Tolerance Precision Select the number of digits after the decimal point for the tolerance values for the secondary units.

Fractional display

Style, the style for the display of fractional dimensions
Stack size, the size of the stacked fractions expressed as a percentage of the whole portion of the dimension
Show double prime mark ("), the display of double prime marks in fractional dimensions

Fractional dimensions are available only for lengths in IPS (inch-pound-second) units.

Stacked Fractional Dimension Size by Percentage


Bent leaders

Leader length Enter the length of the unbent portion of the leader.



Specify the three arrow size fields.

Select Scale with dimension height to re-scale the arrow size according to the height of the dimension extension line.
Select a style from the list, and click a dimension style type button:

Offset distances

Offset distances

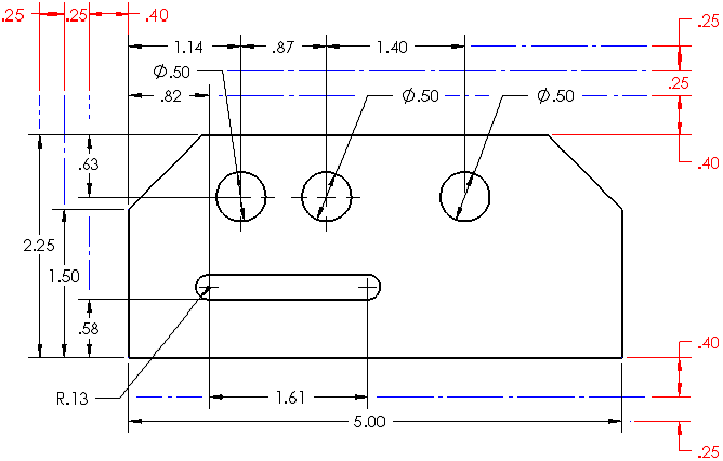

Sets the dimension distances from the model and from each successive location (as indicated by the red dimensions below). Offset distances must conform to the values assigned in Offset distances. The default offset distances are .40 inches (10.16 mm) from the model edge and .25 (6.35 mm) inches between dimensions.

For baseline dimensions, specify the offset distances:
  • Between the model and the first dimension extension line
  • Between dimension extension lines
These values also control the spacing between dimensions that are offset from one another and from the model edge when using rapid dimensioning.
Annotation view layout

Select to use offset distances specifications from an annotation view. Clear to enter the gaps.

Break dimension extension/leader lines


Specify the gap in broken extension and leader lines.

Break only around dimension arrows

Select to display breaks only when the lines and arrows intersect.

To break the dimension lines, select the dimension and click Break Lines in the PropertyManager. When you break dimension lines, they break around nearby lines. If you move a dimension significantly, it might not break around nearby lines. To update the display, clear Break Lines for the selected dimension and click Break Lines again.

Extension lines


Specify the distance between the model and the dimension extension lines. This value also controls the gap between extension lines and center marks.

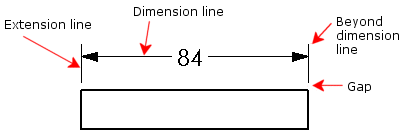

Beyond dimension line

Specify the length that the extension line extends beyond the dimension line.


Leading zeros
Standard Leading zeros appear according to the overall drafting standard.
Show Zeros before decimal points are shown.
Remove Leading zeros do not appear.
Trailing Zeros
Smart Trailing zeros are trimmed for whole metric values, conforming to ANSI and ISO standards.
Standard Trailing zeros appear according to the ASME Y14.5M-1994 standard.
Show Trailing zeros are displayed according to the decimal places you specify for Units.
Remove Trailing zeros do not appear.
Show units of dimensions

Select to show dimension units in drawings.

Add parentheses by default

Select to display dimensions within parentheses.

To set the color, click Tools > Options > System Options > Colors. In Color scheme settings, select Dimensions, Non Imported (Driven).
Center between extension lines

Select to center dimensions between extension lines. This option also selects Center Dimension in PropertyManagers that contain the Center Dimension option.

When you drag dimension text between the extension lines, the dimension text snaps between the center of the extension lines.

Include prefix inside basic tolerance box

Select to include a text prefix inside tolerance boxes when you specify a prefix.

Display dual basic dimension in one box

Select to include dual dimensions in one basic tolerance box.

Show dimensions as broken in broken views

Select to break dimension lines for broken views.

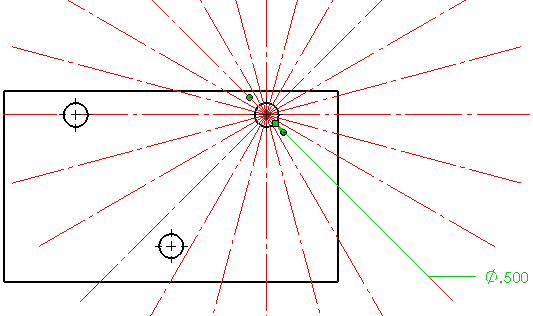

Radial/Diameter leader snap angle

Modify the snap angle intervals used when you drag diameter, radial, or chamfer dimensions along radial locations.


Click to set the tolerance.
