To evaluate the worst case scenario considering fastener float:

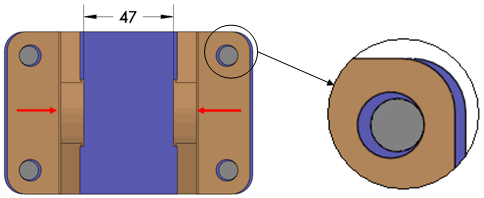

To achieve the worst case minimum result, TolAnalyst calculates the parts as described in the procedure where float is not considered. See float is not considered. When the parts are assembled, the axle supports are pushed inward (as shown by the red arrows below) until the clearance holes make contact with the bolts, resulting in a minimum worst case of 47.
