Setting |
Get/Set Methods |
Return Value
or
<Value>
or
<OnFlag> |
Comment |
|

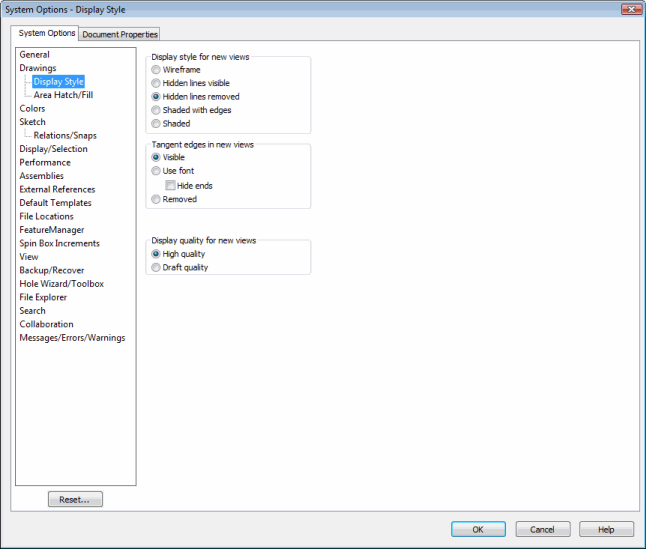

Display style for new views - Wireframe |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swHiddenEdgeDisplayDefault)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swHiddenEdgeDisplayDefault,
<swDisplayMode_e.swWIREFRAME) |
See swDisplayMode_e
for valid options |
|
|
Display style for new views - Hidden lines visible |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swHiddenEdgeDisplayDefault)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swHiddenEdgeDisplayDefault,
<swDisplayMode_e.swHIDDEN_GREYED) |
See swDisplayMode_e
for valid options |
|
|
Display style for new views - Hidden lines removed |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swHiddenEdgeDisplayDefault)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swHiddenEdgeDisplayDefault,
<swDisplayMode_e.swHIDDEN) |
See swDisplayMode_e
for valid options |
|
|
Display style for new views - Shaded with edges |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swHiddenEdgeDisplayDefault)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swHiddenEdgeDisplayDefault,
<swDisplayMode_e.swSHADED) |
See swDisplayMode_e
for valid options |
To display a drawing view shaded with edges, also set ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingsDefaultDisplayTypeHLREdgesWhenShaded,
True) |
|
Display style for new views - Shaded |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingsDefaultDisplayTypeHLREdgesWhenShaded)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingsDefaultDisplayTypeHLREdgesWhenShaded,
<OnFlag>) |
Boolean value |
|
|
Tangent edges in new views - Visible |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTangentEdgeDisplayDefault)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTangentEdgeDisplayDefault,
<swDisplayTangentEdges_e.swTangentEdgesVisible) |
See swDisplayTangentEdges_e
for valid options |
|
|
Tangent edges in new views - Use font |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTangentEdgeDisplayDefault)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTangentEdgeDisplayDefault,
<swDisplayTangentEdges_e.swTangentEdgesVisibleAndFonted) |
See swDisplayTangentEdges_e
for valid options |
Specifies tangent edges using a line in the default
font |
|
Tangent edges in new views - Hide ends |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingHideEnds)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingHideEnds,
<OnFlag>) |
Boolean value |
Specifies whether start and end segments of tangent edges are hidden |
|
Tangent edges in new views - Removed |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTangentEdgeDisplayDefault)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTangentEdgeDisplayDefault,
<swDisplayTangentEdges_e.Removed) |
See swDisplayTangentEdges_e
for valid options |
|
|
Display quality for new views - High quality |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingsDefaultDisplayTypeFastHLRHLV)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingsDefaultDisplayTypeFastHLRHLV,
False) |
False |
|
|
Display quality for new views - Draft quality |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingsDefaultDisplayTypeFastHLRHLV)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingsDefaultDisplayTypeFastHLRHLV,
True) |
True |
|
