Geometry Requirements - Flange

The following item is optional for a component to be used as a Flange in SolidWorks Routing.

Names of routing sketches and dimensions are case sensitive.

Optional Item

Example

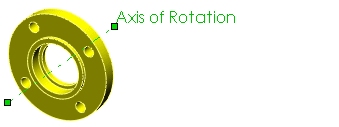

Axis of Rotation

An axis named Axis of Rotation, to facilitate rotating the flange to the desired orientation as you place it in a route
