To evaluate the worst case scenario considering fastener float:

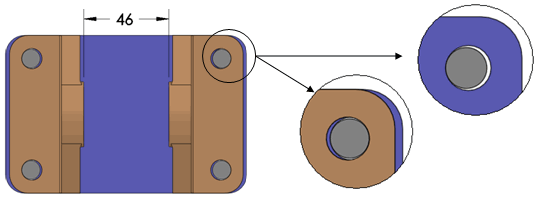

To achieve the worst case minimum result, TolAnalyst simulates the parts as described in the procedure where float is not considered. See float is not considered.When the parts are assembled, the axle supports are pushed up against the inside faces of the top plate's clearance holes, and to the outside faces of the axle supports' clearance holes, resulting in a worst case minimum of 46.
