Viewing a User Pop-up Window

User pop-up windows are visible in Windows Explorer and SOLIDWORKS views of an Enterprise PDM vault.

1. Navigate to an Enterprise PDM vault that has files checked out.
2. Hover over a user name in the Checked Out By column.

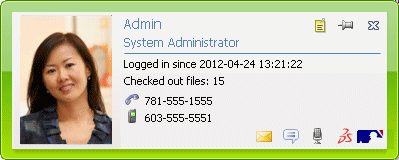

   A window appears that contains information about the user who checked out the file.



   Depending on how much information has been added to the user's properties and how your network is configured, the following information that is specific to the user is provided on the card:

   User's login name and full name
   Date and time the user logged in
   Number of files the user has checked out
   	Presence note from user
   	User's work phone number
   	User's cell phone number
   	Sends user email
   	Sends user a Microsoft Office Communicator message
   	Initiates communication with a user using Microsoft-enabled Voice over IP (VoIP) through Communicator
   	Web sites included in user's properties

3. To pin the card so it remains displayed, click .
4. To close a pinned card, click .
