Displaying Angular Running Dimensions

You can change the display style of existing angular running dimensions.

In this example, you change the display style of the angular running dimensions on the flange.

To change the display of angular running dimensions:

  1. Open my_flange.slddrw, if it is not already open.
  2. In the graphics area, right-click an angular running dimension that is on the flange. In the Dimension PropertyManager on the Leaders tab, choose from these options:
    Option Description

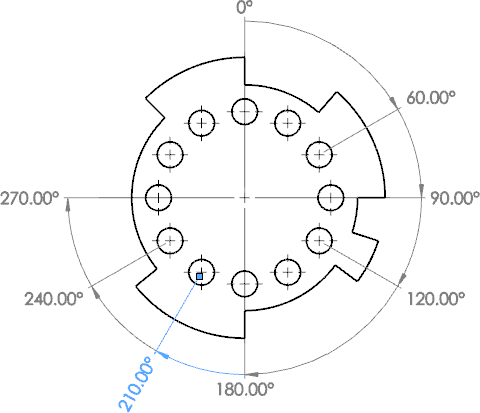

    Display as chain dimension Displays angular running dimensions as chain dimensions.

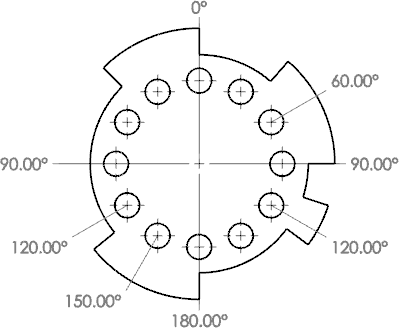

    Run bidirectionally Causes all angular dimensions to run from the base in the closest direction. No dimension is greater than 180° from the base.

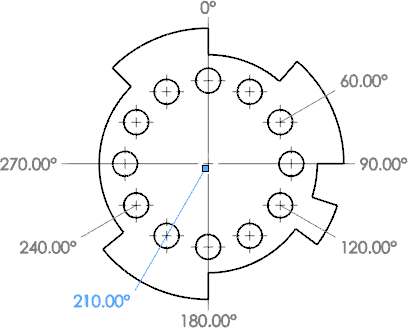

    Extension line extends from center of set Extends the extension line to the center of the dimension set.

    Custom Text Position Changes text position for the selected dimension. For example, click pm_inline_text.png to place the text inline.

  3. Close the file without saving it.
