Example Archive Selection

The revision scheme is:

  • Primary - PRE, DEV, and REL
  • Secondary - range 01-99

The criteria under Select by revision are:

  • Primaries - 1
  • Secondaries - 3

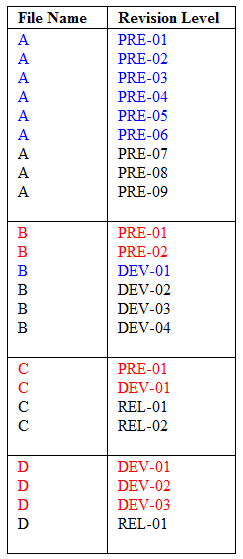

The files are selected to be archived based on the revision level criteria as follows:

  • Red - primary
  • Blue - secondary
  • Black - not selected
