Example: Deform - Curve to Curve with Additional Faces to be Deformed

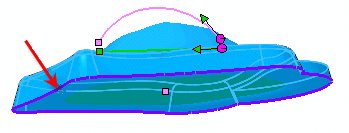

Initial Curves PM_deform_initial_curve.gif, Target Curves PM_deform_target_curve.gif and Fixed Edges/Curves/Faces PM_deform_fixed-edges-curves-faces.gif are selected.
No faces selected, just the edges highlighted in purple

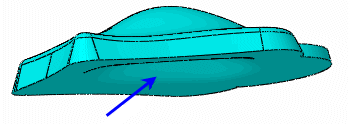

No face selected in Additional faces to be deformed PM_face.gif. The bottom face arrow_blue.gif is deformed along with the top face of the body.

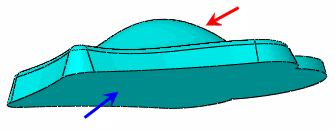

Top face selected arrow_red.gif in Additional faces to be deformed PM_face.gif . The bottom face is not affected arrow_blue.gif.
