Adding Angular Dimensions Along the Same Running Dimension

You can add more angular dimensions along the same angular running dimension.

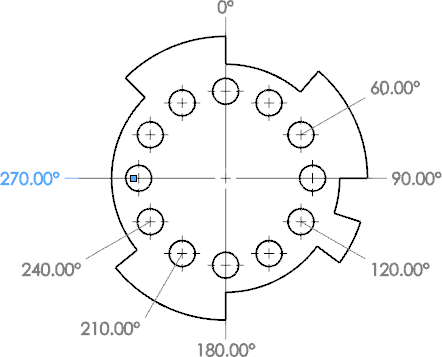

In this example, you add more angular running dimensions to the flange.

To add more dimensions along the same angular running dimension:

  1. Open my_flange.slddrw, if it is not already open.
  2. Right-click an angular running dimension that is on the flange and click Add To Running Dimension.
  3. Select the vertices or center marks to dimension. As you select each item, the dimension is placed in the view, aligned to the zero-degree dimension.


  4. Click PM_OK.gif to exit the angular running dimension mode.
