Creating Angular Running Dimensions

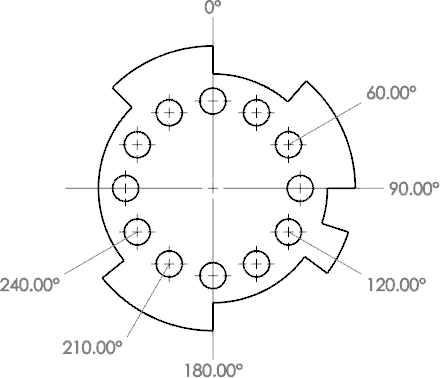

You can create angular running dimensions for an arc or circle in a drawing or sketch.

In this example, you create angular running dimensions in a drawing.

To create angular running dimensions:

  1. Open install_dir\samples\whatsnew\drawings\angular_running_dimension\flange.slddrw.

    A flange appears.


  2. Save the flange model as my_flange.slddrw.
  3. Close install_dir\samples\whatsnew\drawings\angular_running_dimension\flange.slddrw.
  4. Click Angular Running Dimension tool_angular_dimension.png (Dimensions/Relations toolbar) or Tools > Dimensions > Angular Running Dimension.

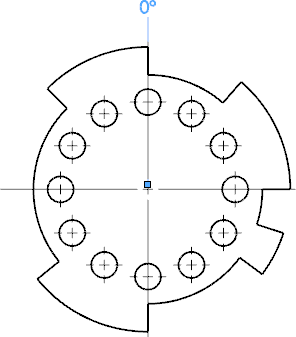

  5. In the graphics area, select the center mark of the flange, from which all others will be measured, to be the base (the zero-degree dimension), and click again to place the dimension outside the model.


  6. Select the vertices or center marks to dimension. As you select each item, the dimension is placed in the view, aligned to the zero-degree dimension.


  7. Click PM_OK.gif to exit the angular running dimension mode.
