Examples: Section View with Offset

These examples illustrate adding offsets to a cutting line.

Arc Offset

  1. Locate a horizontal cutting line Cutting-line-Horizontal.png.
  2. Add an arc offset sectionxpert-arc-offset.png.
    section-arc-offset-2.gif section-arc-offset-3.gif

    First point on cutting line to start arc offset

    Second point on geometry to set angle of the offset
  3. Final section view

Single Offset

  1. Locate a vertical cutting line Cutting-line-Vertical.png.
  2. Add a single offset sectionxpert-single-offset.png.
    section-single-offset-2-U.gif section-single-offset-3-U.gif

    First point on cutting line to start single offset

    Second point on geometry to set depth of the offset

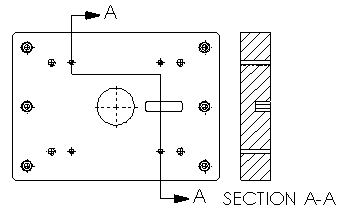

  3. Final section view

Notch Offset

  1. Locate a horizontal cutting line Cutting-line-Horizontal.png.
  2. Add a notch offset sectionxpert-notch-offset.png.
    section-notch-offset-2.gif section-notch-offset-3.gif

    First point on cutting line to start notch offset

    Second point on cutting line to set length of the offset

    Third point on geometry to set depth of the offset


  3. Final section view
