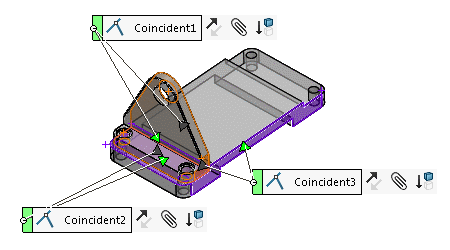

Mate callouts identify mated entities in the graphics area to help you to visualize mate systems. They provide tools to perform common mate functions and troubleshoot mate errors.
For problem mates, error and warning icons are displayed in the callouts.
|
Warning |
The mate is satisfied, but involved in over defining the assembly. |
|
Error |
The mate is not satisfied. You can click Force Mate
in the callout to force the mate to solve, thus breaking another mate. You can perform iterations of forcing mates to help you discover the problem mate.
|
