Broken-Out Section View on Section View

You can add broken-out section views to section views.

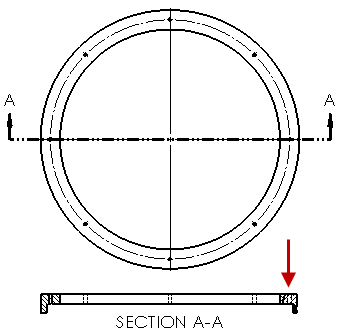

Broken out section view on section view Enlarged image of broken-out section view

To add a broken-out section view to a section view:

  1. In a section view, click Insert > Drawing View > Broken-out Section.
  2. Sketch a closed profile such as a spline.
  3. In the PropertyManager, set options.
  4. Click .
