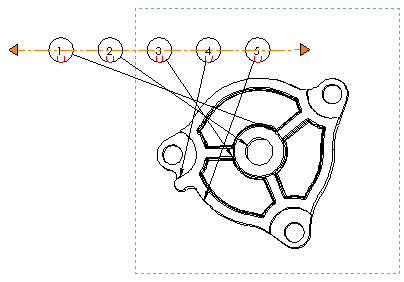

Magnetic lines are a convenient way to align balloons along a line at any angle.
You attach balloons to magnetic lines, choose to space the balloons equally or not, and move the lines freely, at any angle, in the drawing.
- You can have multiple magnetic lines in a drawing view.
- Magnetic lines do not print.
- Balloons maintain their alignment when the magnetic lines are not visible.
- When you drag a balloon onto another balloon on a magnetic line, the balloons swap positions.
- You can insert balloons before or after inserting magnetic lines.
- You can insert magnetic lines automatically when you use the Auto Balloon command.
Video: Magnetic Lines Example
