Along X Inferred
|
Horizontal line sketched along X axis. Applies to 3D sketches.
|
Along Y Inferred
|
Vertical line sketched along Y axis. Applies to 3D sketches.
|
Along Z Inferred
|
Horizontal line sketched along Z axis. Applies to 3D sketches.
|
Coincident Inferred
|
Second circle sketched coincident to first circle.
|
Colinear Added
|
Colinear relation added to the first two horizontal lines.
|
Concentric Added
|
|
Coradial Added
|
Coradial relation added to the inner arcs.
|
Equal Added
|
Equal relation added to all inner circles. This way, you set the diameter for only one circle.
|
Equal Curvature Added
|
The rate of change of the slope (curvature) is the same at the point shared between the curves (C2 continuous).
|
Equal Slots Added
|
|
Fix Added
|
Fixed relation added to point.
|
Fix Slot Added
|
|
Horizontal Added
|
Horizontal relation added to spline handles.
|

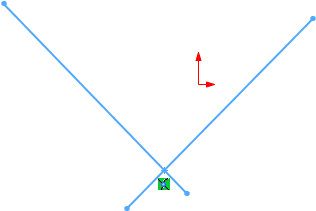

Intersection Inferred or added
|
Relation added at the intersection of the point and two lines. If you sketch the lines and points so they intersect, the relation is inferred.
|
Merge Added
|
The endpoint of the line and the point on the rectangle are merged to create one point.
|
Midpoint Inferred or Added
|
Construction line sketched from the midpoint of the diagonal line.
|
Normal Added
|
Normal relation added between the line and plane.
|
Offset Inferred
|
Larger rectangle is offset by 10 from the smaller rectangle using the Offset Entities tool.
|
On Edge Inferred
|
Edges of the solid are projected to the sketch plane using the Convert Entities tool.
|
On Plane Inferred and Added
|
Any geometry sketched on a plane.
|
On Surface Inferred
|
Point sketched on a surface.
|
Parallel Inferred
|
Two lines sketched with parallel relation.
|
Parallel YZ Added
|
Parallel relation added to the 3D line and front plane.
|
Parallel ZX Added
|
Parallel relation added to the 3D line and front plane.
|
Perpendicular Inferred
|
Second line sketched perpendicular to first line.
|
Pierce Added
|
Pierce relation added between sketch point and vertical line.
|
Symmetric Inferred or Added
|
Relations added using the Mirror Entities or Dynamic Mirror tool.
|
Tangent Added
|
Tangent relation added to two splines.
|

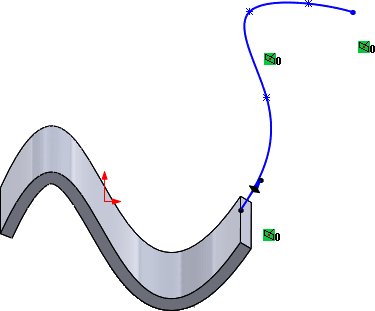

Tangent to Face Added
|
Same slope at the edge of intersection between the face and spline (C1 continuous).
See Tangent to Face Relations with Splines.
|
Traction |
See Using Traction and Belts for Layout Sketches. |
Vertical Inferred
|
Circle sketched with center inferred to sketch origin.
|
