You can insert an assembly with a SpeedPak configuration into a
higher-level assembly.
In the higher-level assembly, insert the subassembly by any of
the following methods:
- Use the Insert
Component PropertyManager. Select the SpeedPak configuration
under Configurations in the Open dialog box.
- Drag from the File
Explorer tab in the Task Pane.
- Drag from
the Design Library in the Task Pane.
- Drag from
File Explorer.
- Ctrl + drag within the assembly to insert
additional instances of existing components.

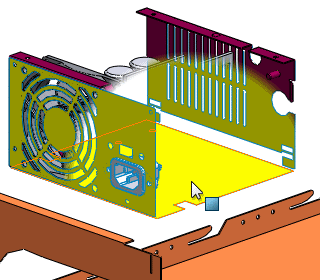

In the region surrounding the pointer, only the faces,
bodies, reference geometry, sketches, and curves you selected for the
SpeedPak are visible. They are the only items you can select for operations
such as mating.
