Selection of Frequency Points

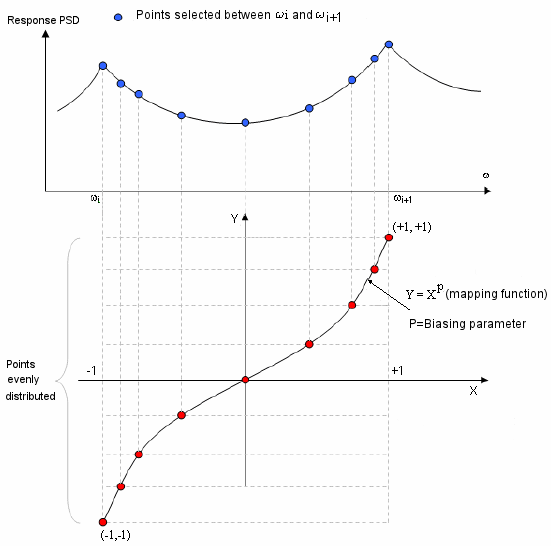

The figure below illustrates the distribution of the frequencies at which the solution is calculated for random vibration studies.

The normalized mapping function is Y = XP where:

P = Biasing parameter (power).

Y = Uniform scaling between -1 and 1 with the requested number of frequency points.

X = Normalized to correspond to -1 for ω1 and +1 for ωi+1
