Break Corner/Corner-Trim

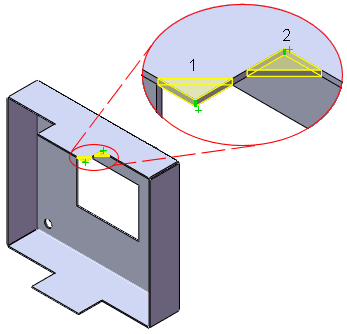

The Break Corner/Corner-Trim tool cuts or adds material to a folded sheet metal part on an edge or a face.


1. External corner: cut material

2. Internal corner: add material

Contents

  • Creating a Break Corner

  • Break Corner/Corner-Trim PropertyManager

  • Creating a Corner Trim

    The Corner-Trim tool cuts or adds material to flattened sheet metal parts on an edge or a face.
