Output Viewer Tab

On the Output Viewer tab:

• Referenced rendered output remains when you save a project. For example, if you send the project to another user, that user can see the rendered output content in the Output Viewer tab.
• Render jobs can include an individual image or multiple rendered images. Content includes:
  • Single image renders
  • 360 camera renders
  • Rendered layers (such as Albedo, Alpha, and Depth)
  • Configurations
  • All camera renders
• You can scroll through thumbnails of rendered output content and multiselect rendered content to publish to 3DSpace or 3DSwym^®.

To open the Output Viewer tab:

1. Click Output Tools > Render .
2. In the dialog box, on the Render tab, click Start Render.

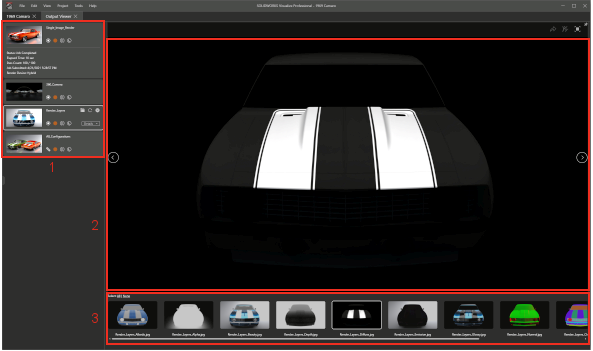

Areas of the Output Viewer tab include:

Area	Description

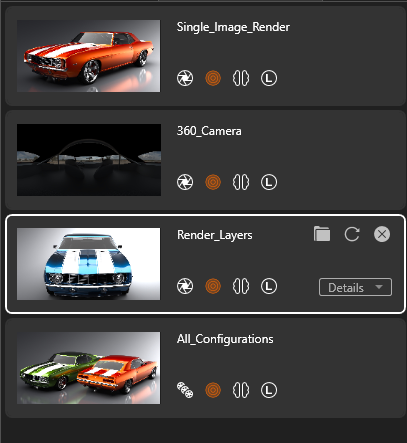

1. Render job palette	Displays a list of render job submissions. You can: Monitor render progress Pause or save renders Initiate rerenderings Review the Output Tools options for the renders Right-click a render job and click Remove Job. Right-click in the render job palette and: Delete unlinked render jobs Sort render jobs Right-click the scroll bar and scroll to various areas

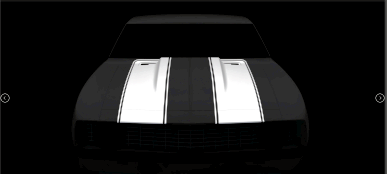

2. Render viewport	Displays output content being rendered. It also acts as a content viewer where you can see completed render jobs. In the upper right corner of the render viewport, you can: Publish to 3DSpace . Publish to 3DSwym . Publishes rendered content to 3DSwym. Actual Size and Fit to Window . Changes the render viewport size.

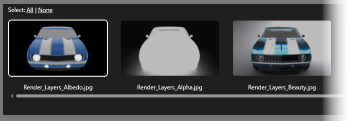

3. Image thumbnails	Lets you select renderings to open or view in the render viewport. When you click a thumbnail, the image opens in the render viewport. If you double-click a thumbnail, the image opens in an external viewer.
