Set Up a PDM Vault View When Creating an Administrative Image

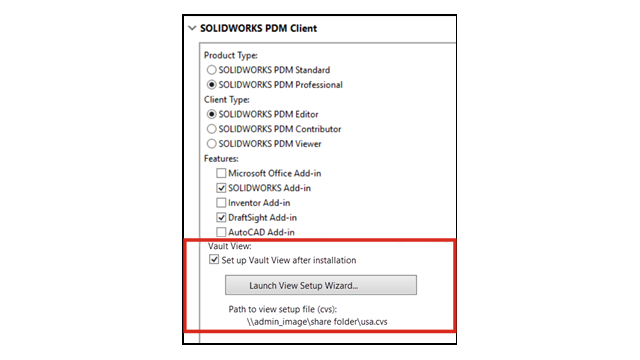

Administrators can set up a local vault view when creating an administrative image for SOLIDWORKS Enterprise PDM client users.

A local file vault view is the local working folder on a client workstation where files are cached and where a user edits the content of files that are checked out.

This feature lets administrators create a local vault view without having to create and run a separate script.

To create the vault view on the client machine, you need a Conisio View Setup (.cvs) file that defines the parameters for configuring the vault view on the client machine. You can reference an existing .cvs file or create this file from the Administrative Image Option Editor.
