The geometric tolerance symbol adds geometric tolerances to parts and drawings using feature control frames. The SOLIDWORKS software supports the ASME Y14.5-2009 Geometric and True Position Tolerancing guidelines.

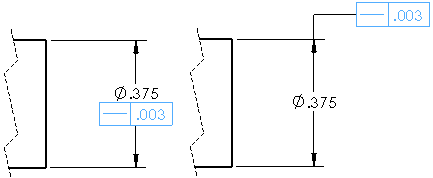

- You can place geometric tolerancing symbols, with or without leaders, anywhere in
a drawing, part, assembly, or sketch, and you can attach a symbol anywhere on a
dimension
line.
- Various
properties dialog
boxes
for geometric tolerance symbols
offer
selections based on the symbol you choose. Only the attributes that are
appropriate for the selected symbol are available.
- A geometric tolerance symbol can have any number of frames.
- The pointer changes to
when it is on a geometric
tolerancing symbol.
- You can add multiple symbols without closing the dialog box.
- You can display multiple leaders. Video: Multiple Leaders
- You can add more leaders to an existing symbol by holding down Ctrl and dragging a leader attachment point.
- To edit an existing symbol,
select
the symbol.
- When you drag the leader of a geometric tolerance symbol off a model edge, an automatic witness line is created.
