Creating Title Block Tables

  1. In a part or assembly, click Title Block Table (Table toolbar) or Insert > Table > Title Block Table .
  2. In the PropertyManager, do one of the following:
    • To use a template to create the table, under Table Template, click Open template for Title Block Table PM_Table_Browse_Template.gif, in the dialog box select a template, and click Open.
    • To create a title block table without using a template, under Table Size, select the number of Columns and Rows for the table.
  3. If you are creating the table without using a template, under Border, do one of the following:
    • Click Use document settings to use the border settings stored with the part or assembly.
    • Clear Use document settings and select a line weight for the Box Border border_boundary.png Button and Grid Border border_grid.png Button.
  4. Click .

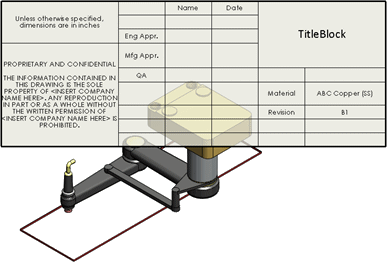

  5. In the graphics area, drag and click to position the table.
    The table appears translucent, so you can see the model.
  6. To size the table proportionally:
    1. Move the pointer over the upper left corner and click .
    2. In the PropertyManager, under Title Block Table Scaling, use the dial control to modify the table size.
      You can also change the borders.
    3. Click .
    You can also drag a corner of the table in the graphics area to resize the table, but the font size does not change proportionally.
  7. Edit the table using the table cell, row, and column toolbars that display when you click in a cell. See Table Cell, Row, or Column Toolbar.
  8. Right-click in the table to display a menu that lets you:
    • Add and manipulate columns and rows
    • Save the table as a template
    • Open the table in a separate window
    • Print the table and model
      To print the table alone, open it in a separate window and print from that window.
