The Output Tools in the main toolbar let you
set options for the rendering output.

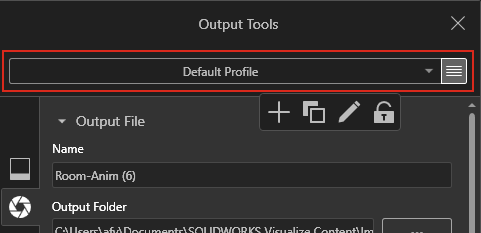

At the top of the Output Tools dialog box, you can
select render profiles in the drop-down list from the Smart Control
Bar. The profiles contain preset options to provide setting presets for
common renderings. You can also create custom profiles and lock them to prevent changes
to the settings.
When you click
Output
Tools
(main toolbar), the
Output Tools dialog box opens.
Tabs in
the Output Tools dialog box:
 |
Snapshot |
Opens the
Snapshot tab to capture what you see on the
screen with more control than an ordinary screen shot. |
 |
Render |
Opens the Render
tab to specify output settings, set the resolution, and choose among
four render modes (Preview,
Fast, Accurate, and
Boost). |
Available only in SOLIDWORKS Visualize Professional
 |
Animation |
Opens the
Animation tab to create a movie of the
animations you set up in the scene. |
 |
Turntable |
Opens the
Turntable tab to render a series of frames
where the objects spin on turntables. |
 |
Sun
Study |
Opens the Sun
Study tab to render a series of frames at different
times of day. |
