Customize Color Settings for Toolpath End Points

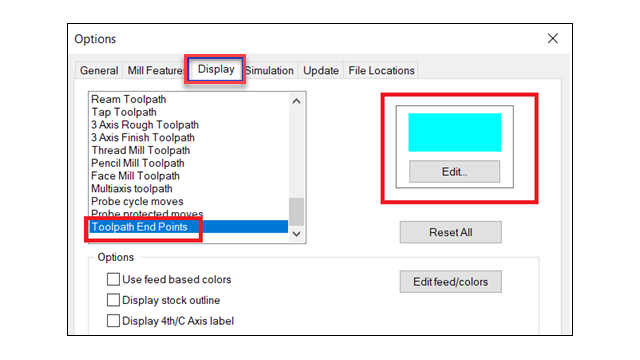

From the Display tab in the Options dialog box, you can apply color settings for toolpath end points.
