Geometric Tolerance Symbols

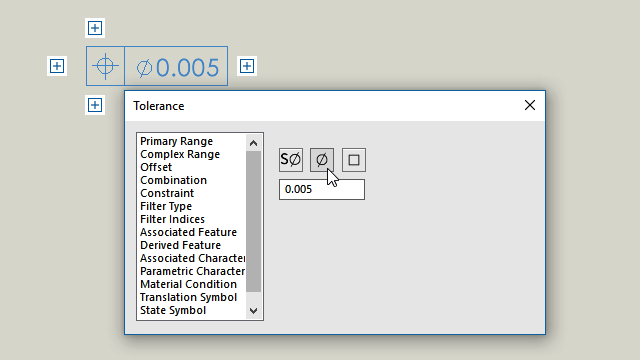

The user interface for geometric tolerancing improves your workflow. You work directly in the graphics area, and the interface guides you as you build feature control frames cell-by-cell.

With cell-specific context menus and on-screen handles, you can build complex feature control frames while keeping focus on the frame itself rather than a separate dialog box.

To enter content into the active cell, you enter values and select items from the context menu. You can randomly enter and edit all the content in the frame. Various cell types are available, including
  • Datum/Datum Group
  • Indicator
  • Text Box
To add another cell, click a handle and select the cell type. Depending on the location of the handle, other options are available, for example New Frame and Text Box.
