Location outlines allow you to graphically show a (geographic) location on a drawing. The location outline can be represented as a rectangle or created with polylines, but should always be closed.

Drawing the outline

Enter coordinates: You can draw the location outline by clicking points in the graphical area or entering coordinates. If using a rectangular outline, just click a second point for the diagonal of the rectangle. If using a polyline outline, click the second point of the line, then continue until the outline is complete. The Close button in the dockable panel lets you automatically connect the last point of the outline to the first point.

Options: The dockable panel lets you toggle between modes when the command is launched.

"Onboard" options

A drop-down list allows you to select the type of outline (Thin, Double and Filled).

Zig-Zag: SOLIDWORKS Electrical inserts a "zig-zag" line on the lower line of the rectangle representing the fact that the whole location is not drawn. This option is not available on location outlines drawn in the form of polylines.

Location label: Allows you to insert the symbol displayed in the dockable panel. This symbol corresponds with the symbol saved in the electrical project configuration; if you want to insert another symbol, click Other symbol.

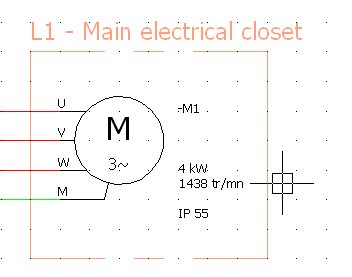

A location label is automatically placed in the top part of the outline.

The location labels are represented by a symbol and attributes which can display the data or properties attached to the location. The location labels have a contextual menu allowing you to, among other things, edit the location properties.

Choosing the location

When the location outline is closed, the Select Location dialog box opens.



1.     Select the preferred location.

2.     Click the Select button.



The dialog box closes, and the drawing automatically updates with the chosen location.

The components placed inside the outline can be associated with the selected location.



3.     Click the desired option to change the location of components, or to keep the location originally associated.
