Slicing Standard SOLIDWORKS BREP Bodies Using Linear and Point Entities

To slice standard SOLIDWORKS BREP bodies using linear and point entities:

  1. Open a model of a standard SOLIDWORKS BREP body.

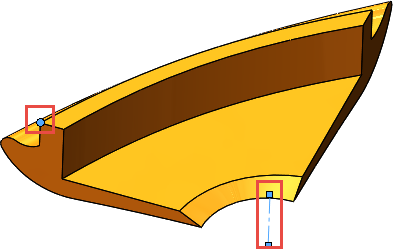

  2. In the graphics area, Ctrl + select a linear and point entity.
  3. Click Insert > Slicing .

  4. In the PropertyManager, specify options.

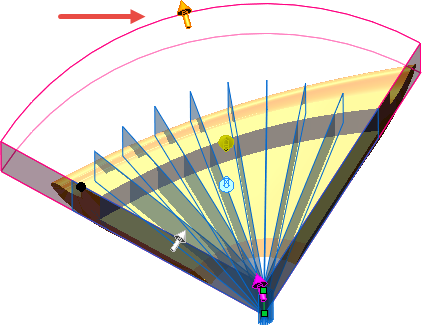

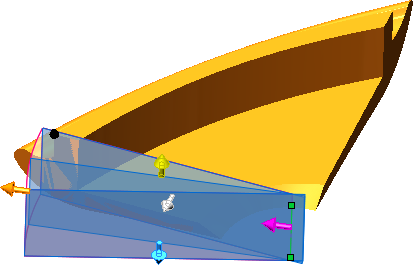

  5. Drag the orange handle to enclose the whole model with the bounding box.

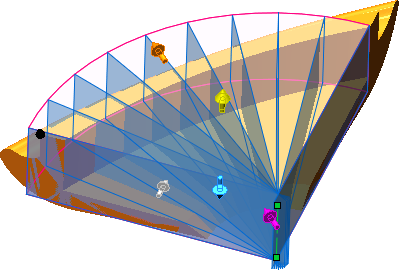

    Use View Orientation (Heads-up View toolbar) tools to ensure that the bounding box covers the whole model.

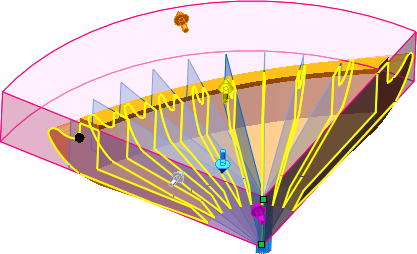

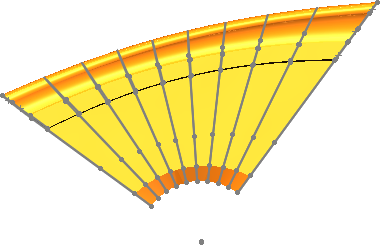

  6. In the PropertyManager, select Preview Slices (slower) to preview each individual slice per slicing plane.

  7. Click .
