The
Annotation Monitor tracks dimensions and annotations that break associativity to their
related entities. It marks them with.
Click
the icon to display a menu with options that are available for the nonassociated
dimension.
| Option |
Description |
| Reassociate |
Re-establishes the annotation or
dimension with the corresponding entities. Specify the
point to which the dimension can relate.
|
| Delete |
Deletes the annotation or
dimension. |
Example:

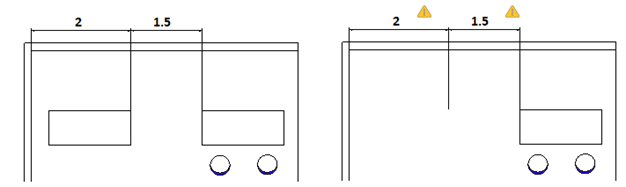

In the following example, a dimensioned entity is deleted. The
Annotation Monitor displays an alert.
To turn on the Annotation Monitor:
- On the status bar, click AMonitor
