Hole Diameters

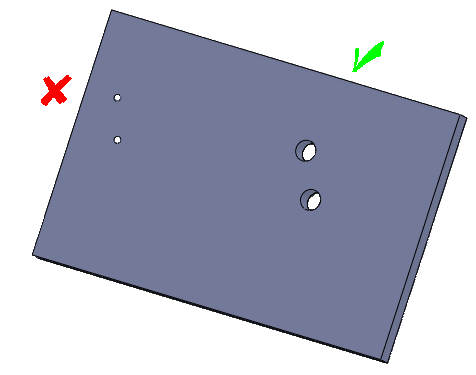

Avoid designing parts with very small holes. Small bits are susceptible to breakage.

To configure this rule, set Hole Diameter to Thickness Ratio.

Parent topicSheet Metal Rules
