Creating Detail Views with Jagged Outlines

To create detail views with jagged outlines:

  1. In a drawing view, click Detail View (Drawing toolbar) or Insert > Drawing View > Detail.

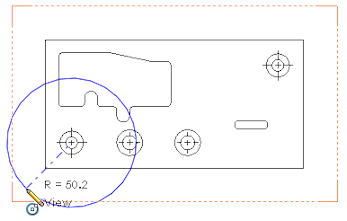

    The Circle tool Tool_Circle_Sketch.gif is active.
  2. Sketch a circle.

  3. In the PropertyManager, under Detail View, select Jagged outline.

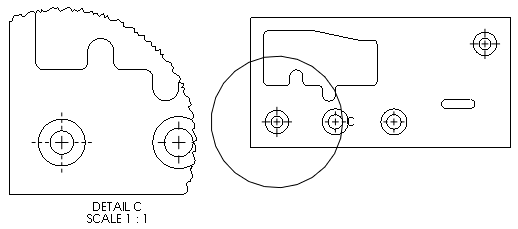

  4. Under Shape Intensity, move the slider to define the intensity of the jagged outline.
  5. Click to place the view.
