Specifying a New Part or Assembly as a Single Physical Product (2024 FD01)

You can designate a new part or assembly as a single physical product.

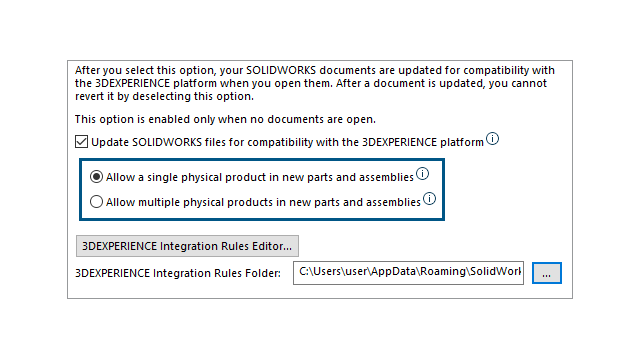

When you select Update SOLIDWORKS files for compatiblity with the 3DEXPERIENCE platform, these options are available:

Allow a single physical product in new parts and assemblies Uses representations to show different configurations of a model.

Select this option if you do not use unique part numbers for your configurations.
Allow multiple physical products in new parts and assemblies Uses physical products to show different configurations of a model.

Select this option if you use unique part numbers for your configurations.

To specify a new part or assembly as a single physical object:
  1. Click Tools > Options > System Options > 3DEXPERIENCE Integration.
  2. Select Update SOLIDWORKS files for compatibility with the 3DEXPERIENCE platform.
  3. Select an option:
    • Allow a single physical product in new parts and assemblies
    • Allow multiple physical products in new parts and assemblies
  4. Create a new part.
  5. Save the part to the 3DEXPERIENCE platform.
