Heidenhain Probe Type

SOLIDWORKS CAM supports probing operations on machine tools that use Heidenhain controllers.

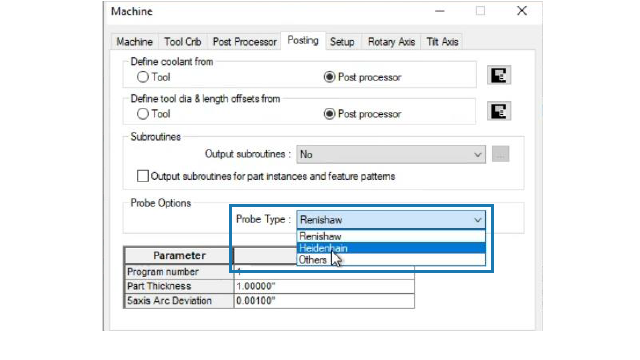

In the Machine dialog box, on the Posting tab, under Probe Options, in Probe Type, select Heidenhain.

Search 'Heidenhain Probe Type' in the SOLIDWORKS Knowledge Base.
