Export Sheet Command

You can export all visible entities from an active sheet viewport and entities from the sheets to the new drawing.

This lets you edit the representation created in the new drawing using commands like TRIM, COPY/PASTE, EXPLODE, STRETCH.

To access the Export Sheet command:

Do one of the following:

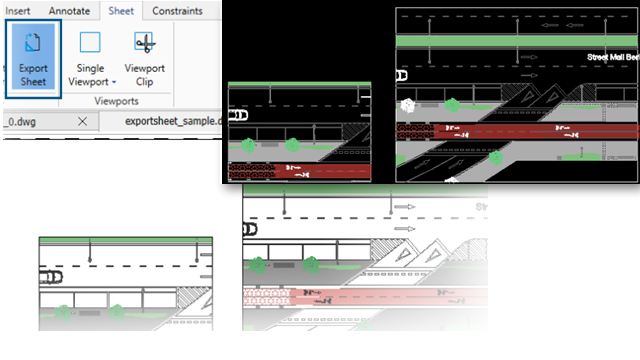

  • On the ribbon, click Sheet > Sheets > Export Sheet.
  • On the menu, click File > Export > Export Sheet.
  • Enter EXPORTSHEET in the command window.
