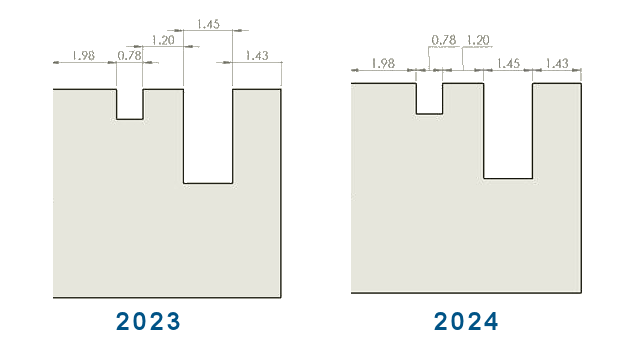

You can ensure that chain dimensions remain collinear even with
limited space.
When dimension text and arrowheads
overlap, you can select options for the best fit.
To keep chain dimensions collinear when dimension text
overlaps:
- Click .
- Under Collinearity
Options, select Offset text
automatically when space is limited.
For
ISO and ANSI, this option is selected by default.
To keep chain dimensions collinear when arrowheads overlap:
- Click .
- Under Collinearity
Options, select When arrowhead
overlaps substitute arrowhead termination automatically with:
and specify an option:
- Points. Replaces
arrowheads with points.
- Oblique Strokes.
Replaces arrowheads with oblique strokes.
For ISO, this option is selected by default.
