Canceling the Import of Third-Party CAD Files

You can cancel the import of a third-party CAD file with 3D Interconnect if importing takes too long.

To cancel the import of third-party CAD files:

  1. Click File > Open.
  2. Optional: 3DEXPERIENCE® Users: If the Open from 3DEXPERIENCE dialog box appears, click This PC.
  3. In the Open dialog box, select a third-party CAD file and click Open.

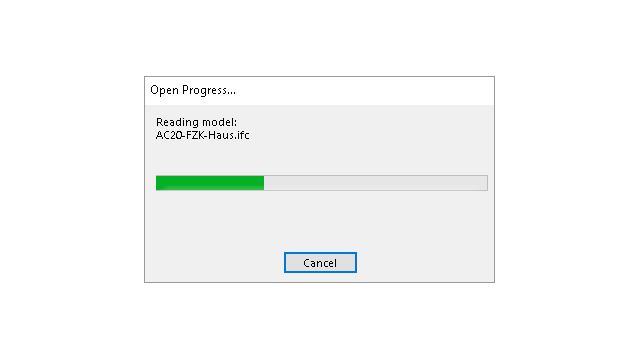

  4. In the Open Progress dialog box, while the import status is Reading model, click Cancel or press Esc.
    You cannot cancel when the import status changes to Loading model.
  5. In the confirmation dialog box, click Yes.
